1. Giao diện:

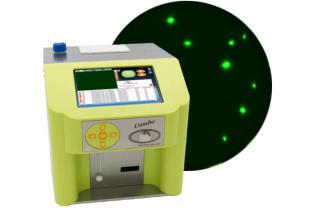

Ultrasonic milk analyzer and somatic cell counter in one device.
Milk analyzer specification:
-
User-friendly ultrasonic milk analyzer: simple in operation, maintenance, calibration and installation;
-
Designed for use in Laboratories and Milk Collection Centers;
-
Integrated 7" fully functional display;
-
Cleaning with peristaltic pump;
- Portable and compact design;
- Very small quantity of milk required;
- Low power consumption;
- No use of hazardous chemicals;
- Measuring accuracy adjustment can be done by the user RS232 Interface;
- ESC POS Printer Support;
- Two samples self-calibration;
- Easily readable results;
- Possibility of connecting pH probe;
- Integrated pH and conductivity measuring;
- Function Real time clock;
- RS232;
- HDMI port;
- USB flash drive;
- One year full warranty.
* LACTOSCAN MCC COMBO can be connected toward weighting scale. If you want to request this option, please Contact us.
Somatic cell counter specification:
- High-end direct fluorescent, low magnification microscope with fast autofocus and cell counting software
- Fast, accurate, reliable somatic cells analysis of cow, sheep, goat, buffalo and human milk.
- Possibility of reference analysis
- Detects subclinical and clinical mastitis
- Lowest cost per test of Somatic Cell Counts
- Easy readable results within 20 to 60 seconds
- Takes a maximum of 60 images by computer controlled X:Y movements and then processes these by the image analysis software
- Stores unlimited number of record in the database
- Results are color coded
- Automatic software update and remote service
- Portable and compact design
- Embedded printer
- Wireless keyboard and mouse
- Use of 4 channels disposable LACTOCHIPS
- Low power consumption
- One year full warranty
*LACTOSCAN MCC COMBO comes in a set with 22'' HD monitor.
2. Hiệu chuẩn: Cow, UHT milk, Cream 45%.* On Customers request milk analyzer LACTOSCAN MCC COMBO can be calibrated for measuring buffalo, whey, skimmed milk (0.01% FAT), concentrated milk (up to 1160 kg/m³ ), recovered milk, etc.
3. Thông số đo:
|
Parameter
|
Measure Range
|
Accuracy
|
|---|
|
FAT
|
from 0.01% to 45%
|
±0.06%
|
|
Solids-non-fat (SNF)
|
from 3% to 40%
|
±0.15%
|
|
Density
|
from 1015kg/m³ to 1160kg/m³
|
±0.3kg/m³
|
|
Protein
|
from 2% to 15%
|
±0.15%
|
|
Lactose
|
from 0.01% to 20%
|
±0.2%
|
|
Added water
|
from 0% to 70%
|
±3
|
|
Milk sample temperature
|
from 1°C to 40 °C
|
±1%
|
|
Freezing point
|
from –0.4°C to –0.7°C
|
±0.001%
|
|
Salts
|
from 0.4% to 4%
|
±0.05%
|
|
pH
|
from 0 to 14
|
±0.05%
|
|
Conductivity
|
from 2mS/cm to 14mS/cm
|
±0.05%
|
|
Total solids
|
from 0% to 50%
|
±0.17%
|
| Kilograms |
from 0kg to 150 kg |
±0.10kg |
Deviation range of the somatic cell counter:
|
Number of cell/mL
|
*CV%
|
|---|
|
100 000
|
5%
|
| 400 000 |
3% |
| 600 000 |
2%
|
* Coefficient of Variation
4. Điều Kiện Môi Trường
- Ambient air temperature: 10°C – 40°C
- Milk temperature: 1°C – 40°C
- Relative humidity: 30% – 80%
5. Nguồn:
- AC Power Supply voltage: 220V/110V
- DC Power Supply voltage: 12V, 5 A
- Power Consumption: 60W max
